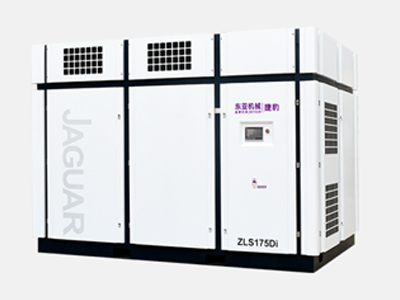

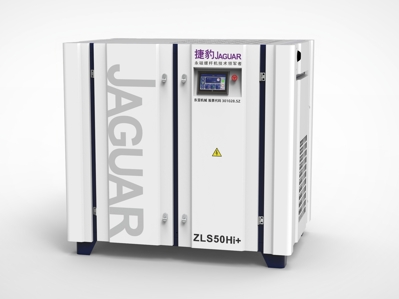

JAGUAR ZLS-HI+
High-Performance Permanent Magnet VSD Air Compressor
Highlights.

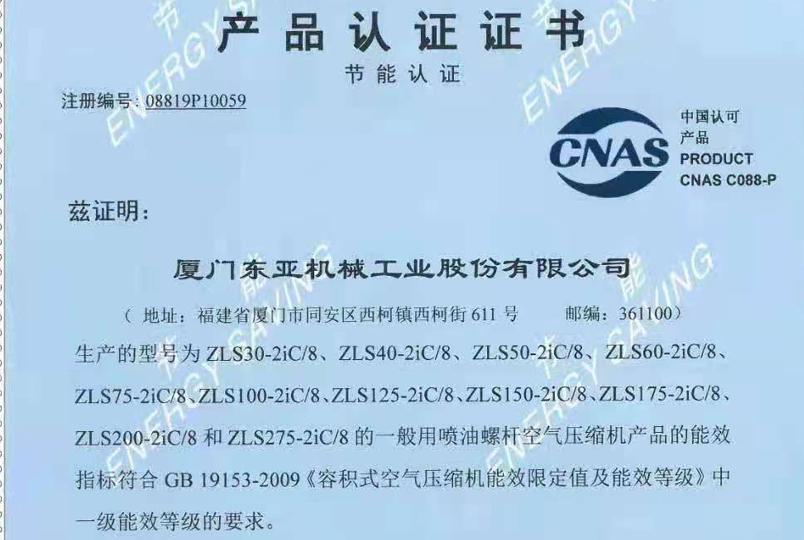

Class 1 Efficiency
Meets GB/19153-2019 Class 1 efficiency standards and saves 25%+ energy versus conventional compressors.
Stable and Efficient
ZLS-HI+ carries Jaguar third-generation high-performance profiles to deliver a more stable compression solution for demanding continuous-duty industries.
Core Technology Mastery
More than 90% self-made core parts with continuously refined Jaguar profiles.
In-house 1V1 tuning for each airend
Optimized Airend Selection for Higher Efficiency

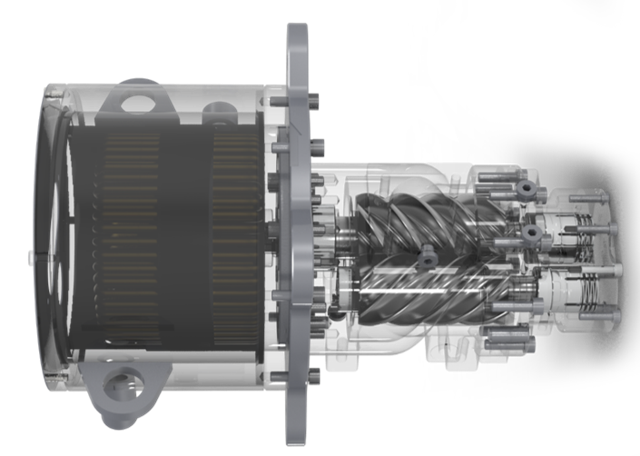

The permanent magnet motor connects directly to the airend through a coaxial drive, cutting transmission losses and improving efficiency by 8% in key duty points.
IE5 Permanent Magnet Synchronous Motor
Motor efficiency reaches up to 98% while remaining efficient through most of the load range.
Liquid cooling ensures stable round-the-clock operation.
Coaxial Direct Drive with Near-100% Transmission Efficiency
Eliminating gearboxes and couplings reduces wear parts by 26% and extends mean time between failures.

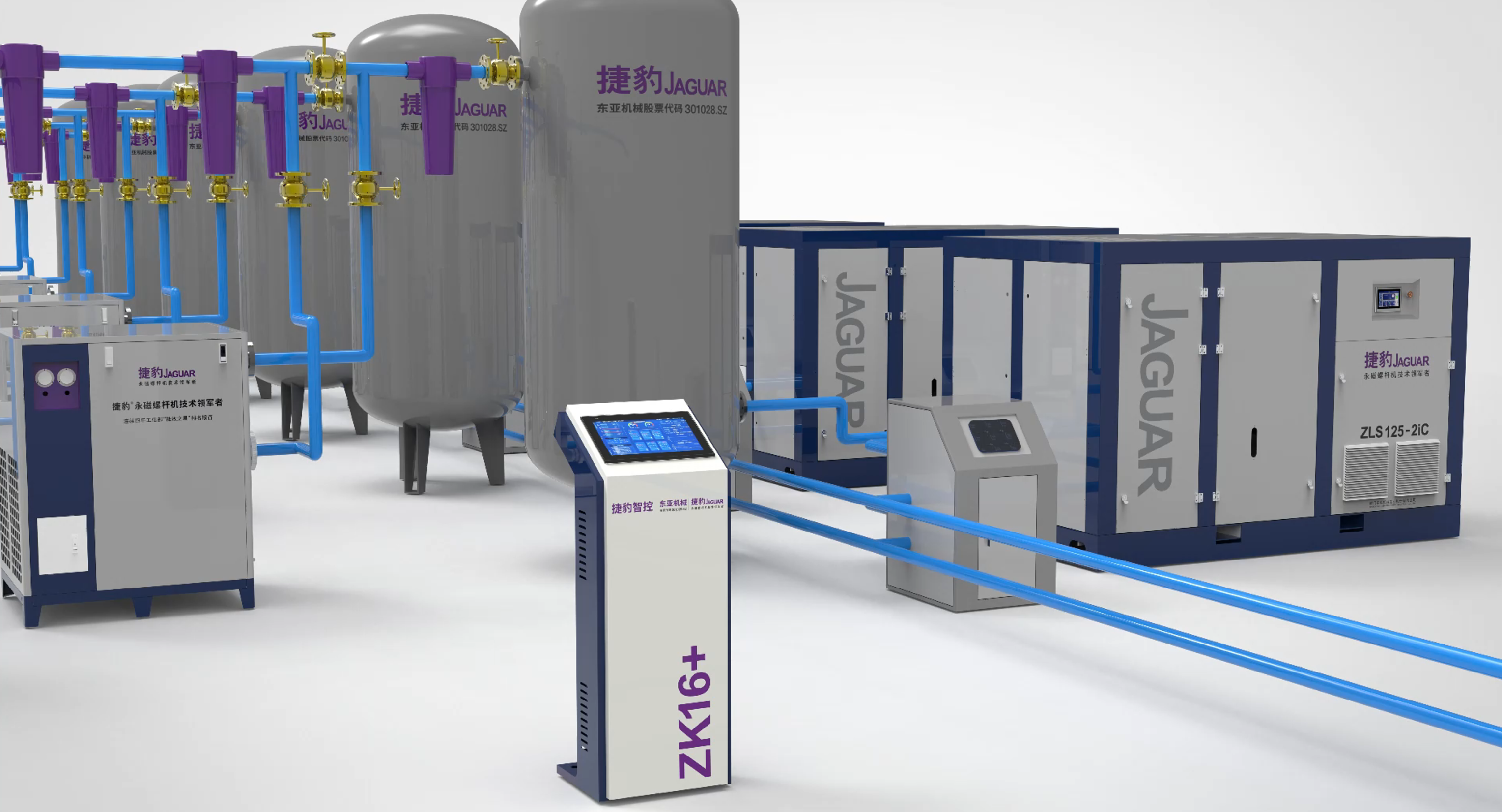

Remote Smart Control Platform
Real-Time Monitoring with Linked Alerts
Cloud strategies continuously optimize station efficiency.

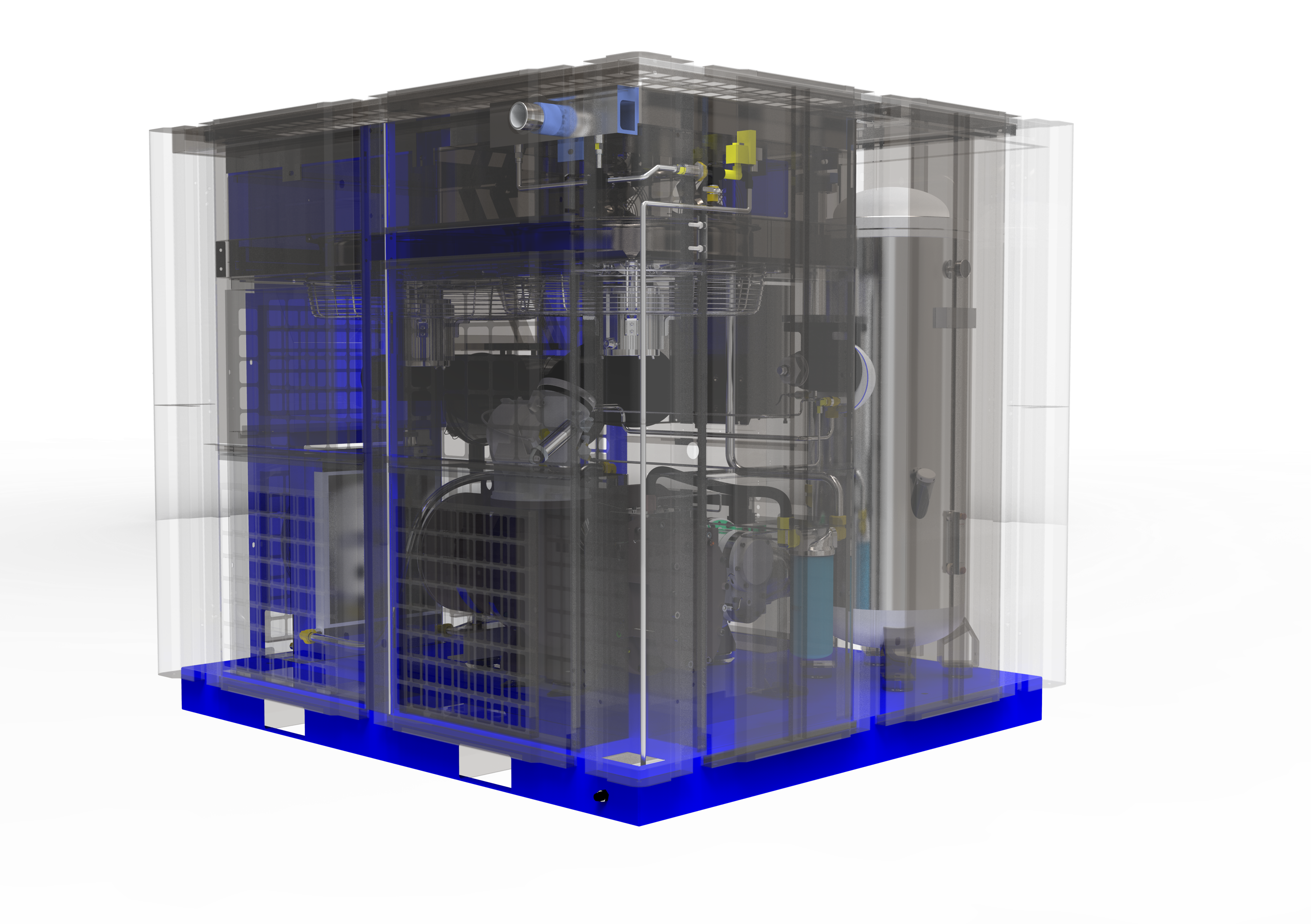

Stable and Reliable
Designed for 24/7 duty, with key parts from the original Xiamen East Asia factory and tightly controlled manufacturing for dependable reliability.
ZLS HI+ Technical Specifications
Drive
- Power
- 5.5 ~ 250 kW
- Airend Type
- Permanent Magnet VSD Twin-Screw Compressor
- Motor Type
- Permanent Magnet Synchronous Motor
- Motor Efficiency
- IE5
- Motor Cooling
- Active Liquid Cooling
Performance
- Flow Capacity
- 1.3 ~ 48.6 m³/min
- Working Pressure
- 0.6 ~ 1.5 MPa
- Efficiency Class
- Class 1 Efficiency（GB19153-2019）
Warranty
- Complete Machine
- One year or 8,000 hours, whichever comes first
- Airend
- Two years or 16,000 hours, whichever comes first (official maintenance required)
