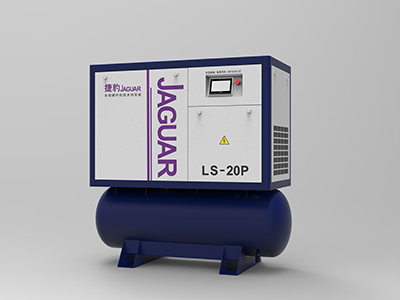

JAGUAR LS Series
Permanent Magnet VSD Coaxial Drive with Class 1 Efficiency
Highlights.
Integrated Design
Liquid-cooled permanent magnet design saves energy without taking extra space.

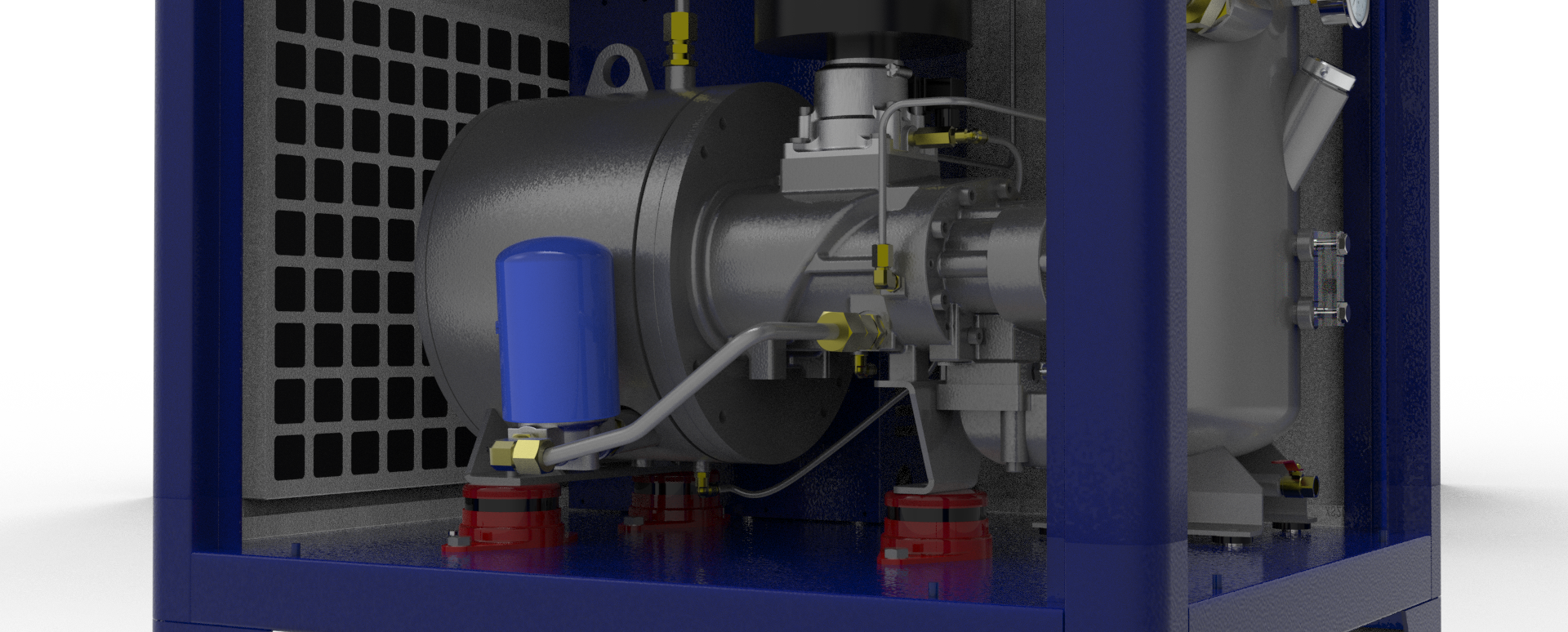

High-Reliability Platform
The LS compact air station continues JAGUAR’s permanent magnet coaxial drive design and integrates air storage, drying, and filtration into a compact body, reducing failure points while improving deployment efficiency.
Core Technology Mastery
More than 90% self-made core parts with continuously refined Jaguar profiles.
In-house 1V1 tuning for each airend

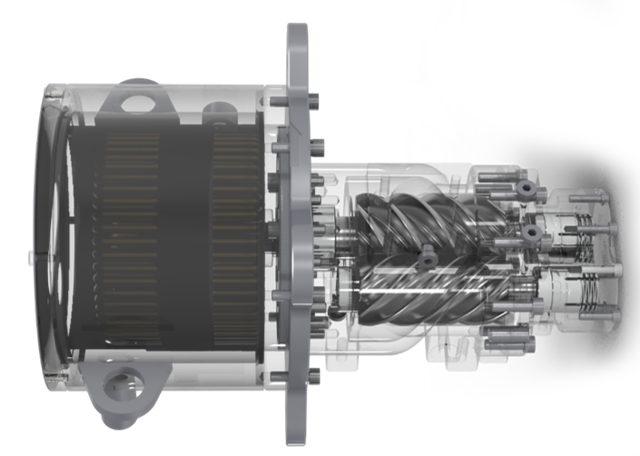

Permanent Magnet VSD Coaxial Airend with IP65 Protection
Uses an IE5 permanent magnet VSD motor with flexible speed adjustment based on demand, plus a fully enclosed liquid-cooled motor housing with IP65 protection.
IE5 Permanent Magnet Synchronous Motor
Motor efficiency reaches up to 96% and stays efficient across most load ranges.
Liquid cooling ensures stable round-the-clock operation.
One Machine, One Full Air Station
The integrated design combines the compressor, dryer, air receiver, precision filters, automatic drain, and other station accessories into a compact footprint, saving 60% of floor space compared with a traditional air station.
Low-Noise Experience
Acoustic noise reduction, a fully sealed motor, and multi-layer soundproof materials reduce average noise by 6 dB.

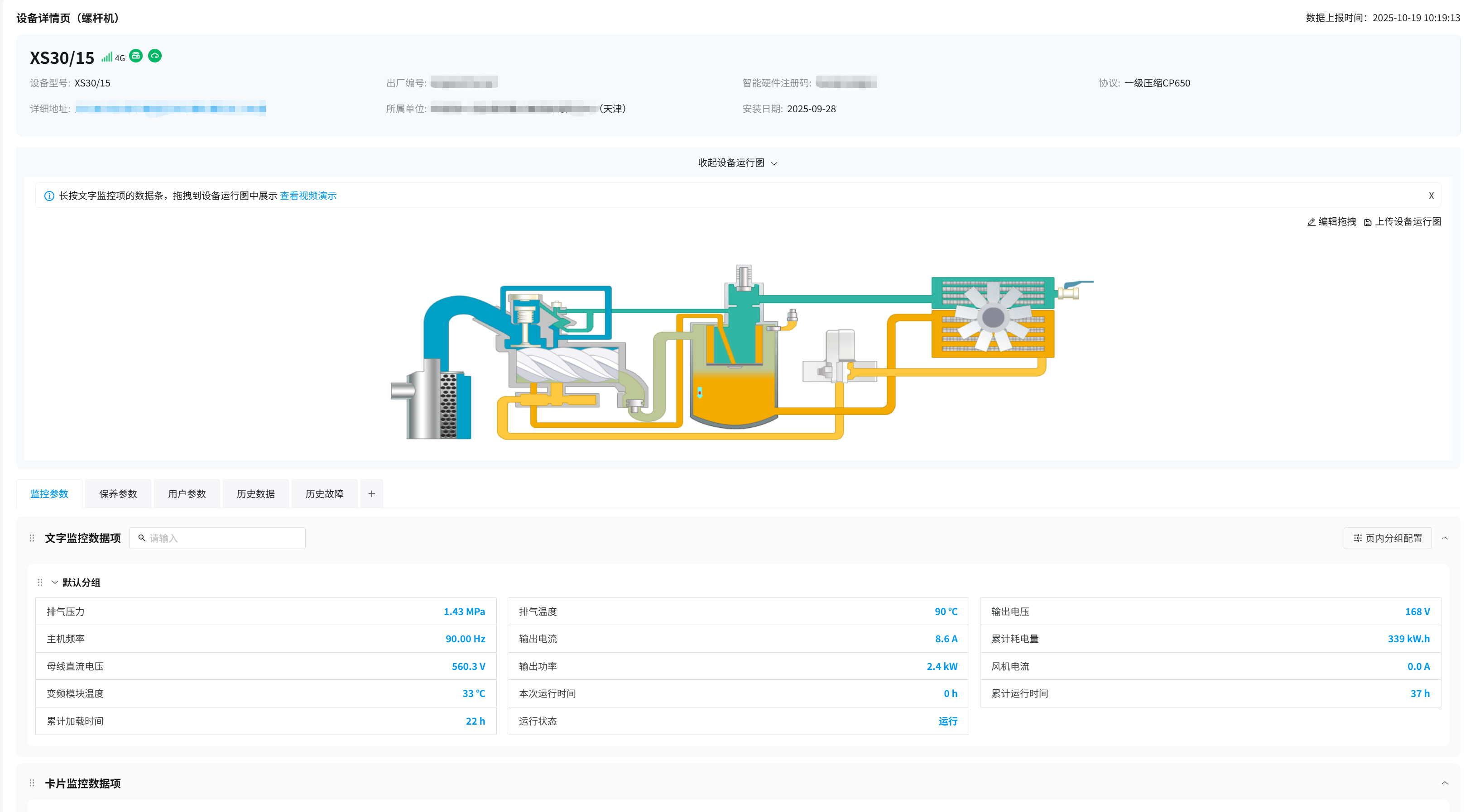

Remote Maintenance
The IoT platform issues automatic alerts and lets you monitor your compressor anytime on mobile or web.
XS Series Technical Specifications
Drive
- Power
- 7.5~75kW
- Airend Type
- Permanent Magnet VSD Screw Compressor
- Motor Type
- Permanent Magnet Synchronous Motor
- Motor Efficiency
- IE5
- Motor Cooling
- Liquid Cooling
Performance
- Flow Capacity
- 0.75~13.8m³/min
- Working Pressure
- 0.7~1.5MPa

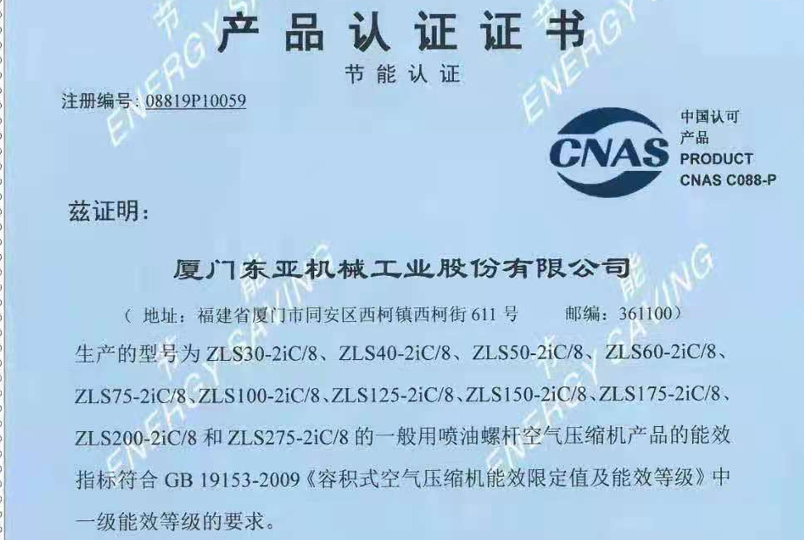

- Efficiency Class
- Class 1 Efficiency（GB19153-2019）
Warranty
- Complete Machine
- One year or 8,000 hours
- Airend
- Two years or 16,000 hours
