JAGUAR ZLS-2iC
Fourth-Generation Dual-PM Two-Stage Air Compressor
Highlights.

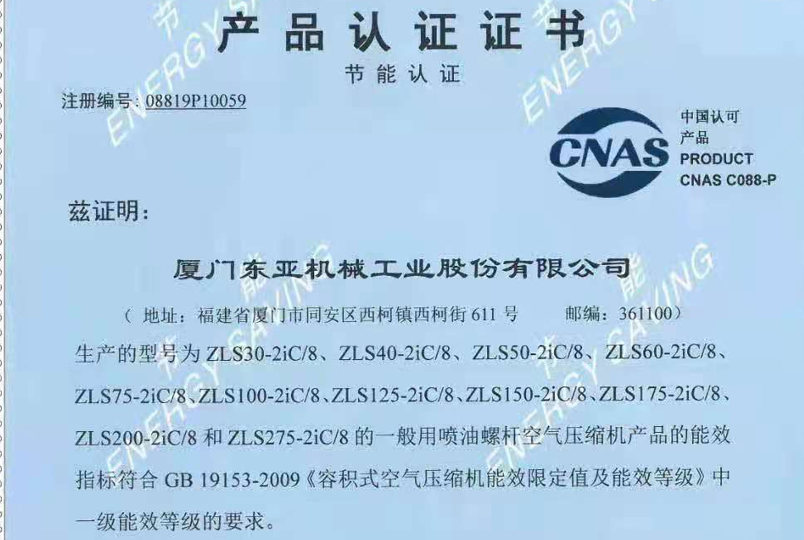

Beyond Class 1 Efficiency
Meets GB/19153-2019 Class 1 efficiency standards and saves 30%+ energy versus conventional compressors.
Efficiency Benchmark
The Jaguar ZLS-2iC range uses fourth-generation airends to deliver exceptional efficiency and stable performance across manufacturing, automotive, power, medical, textile, and solar applications.
Core Technology Mastery
Over 90% self-made core components with 100+ third-generation Jaguar rotor profiles.
One of the few manufacturers in China with this capability.

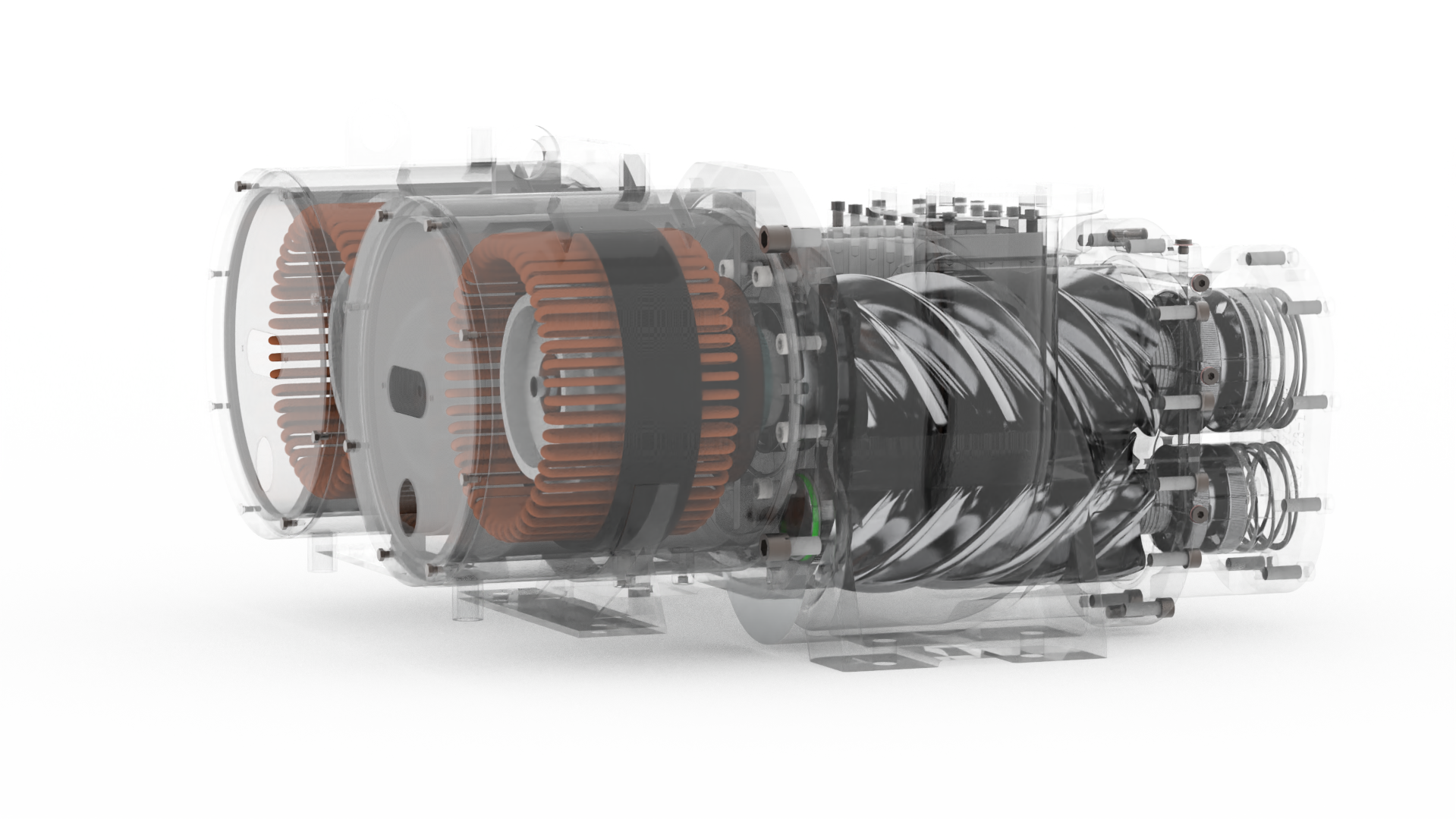

Upgraded Airend: Fourth-Generation Dual-Drive Two-Stage Compression
Easy to maintain, with dual motors independently driving each stage for a more balanced compression ratio and 12% higher efficiency than the first generation.
IE5 Permanent Magnet Synchronous Motor
Motor efficiency reaches up to 98%, with more than 20% better performance at partial load.
Liquid-cooled main motors stay reliable even in harsh environments.
Coaxial = Reliable + Efficient
Each stage uses a direct coaxial drive for near-100% transmission efficiency, fewer wear parts, and longer trouble-free operation.
Ultra-Low Noise
Breakthrough noise control with an independent acoustic enclosure and multilayer insulation.
Overall noise is reduced by an average of 8 dB versus the previous generation.
Liquid-Cooled Motor
Forced liquid cooling keeps the motor at ideal operating temperature for efficient, reliable performance in harsh conditions.
ZLS 2iC Technical Specifications
Drive
- Power
- 22 ~ 450 kW
- Airend Type
- Dual Permanent Magnet VSD Two-Stage Compression (Screw)
- Motor Type
- Permanent Magnet Synchronous Motor
- Motor Efficiency
- IE5
- Motor Cooling
- Active Liquid Cooling
Performance
- Flow Capacity
- 3.6 ~ 90.5 m³/min
- Working Pressure
- 0.4 ~ 1.25 MPa
- Efficiency Class
- Class 1 Efficiency（GB19153-2019）
Warranty
- Complete Machine
- One year or 8,000 hours, whichever comes first
- Airend
- Two years or 16,000 hours, whichever comes first (official maintenance required)
