JAGUAR Fuxing ES Series
Permanent Magnet VSD Coaxial Drive with Both Efficiency and Value
Highlights.
Class 1 Efficiency
Liquid-cooled permanent magnet design saves energy without taking extra space.

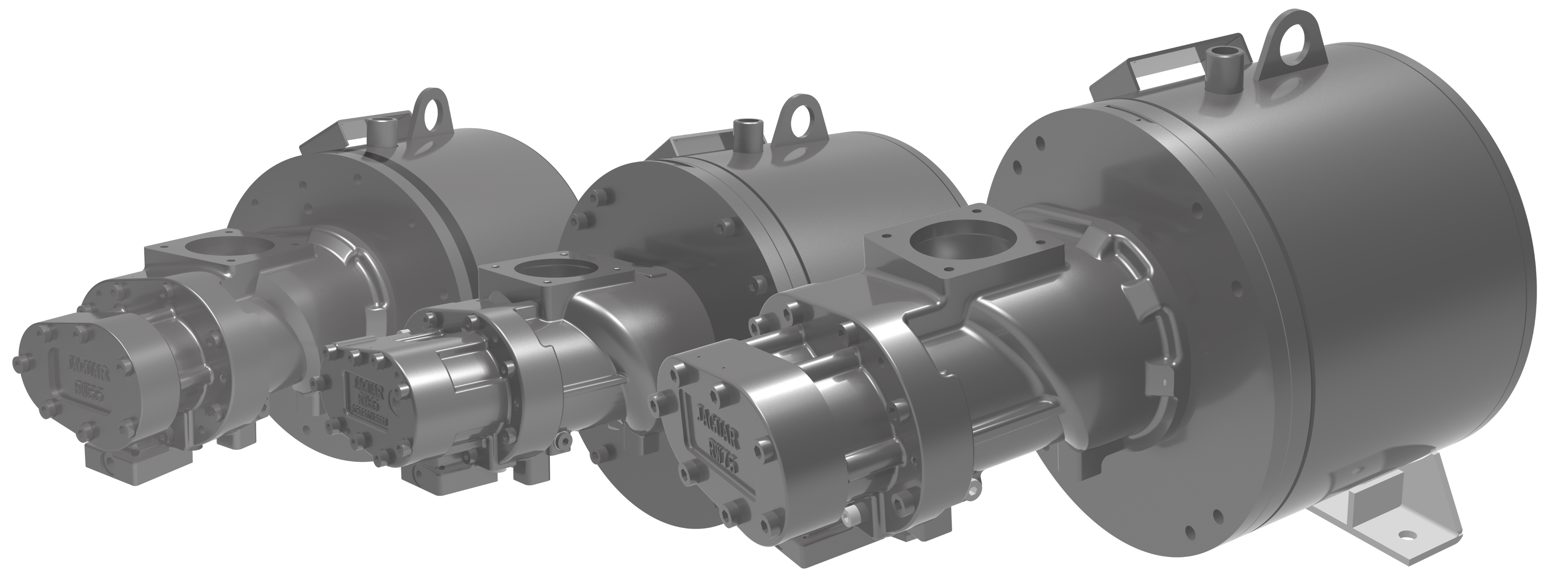

High-Reliability Platform
The ES series permanent magnet VSD compressor uses JAGUAR’s coaxial drive structure to achieve fewer parts, lower failure rates, and more stable continuous output.
Core Technology Mastery
More than 90% self-made core parts with continuously refined Jaguar profiles.
In-house 1V1 tuning for each airend

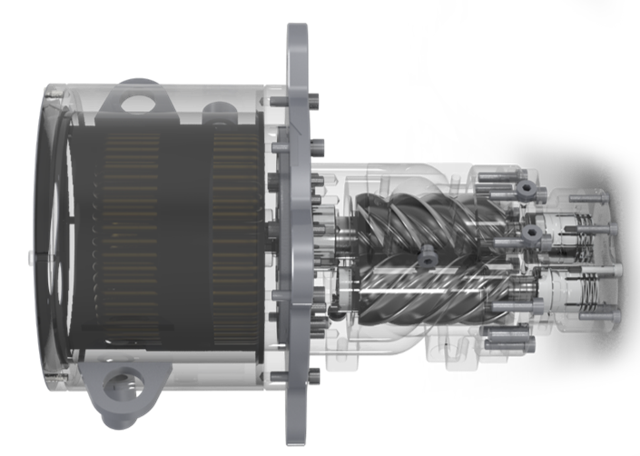

Permanent Magnet VSD Coaxial Airend with IP65 Protection
Uses an IE5 permanent magnet VSD motor with flexible speed adjustment based on demand, plus a fully enclosed liquid-cooled motor housing with IP65 protection.
IE5 Permanent Magnet Synchronous Motor
Motor efficiency reaches up to 96% and stays efficient across most load ranges.
Liquid cooling ensures stable round-the-clock operation.
Energy Saving Without Extra Footprint
The integrated design saves your valuable floor space.
Low-Noise Experience
Acoustic noise reduction, a fully sealed motor, and multi-layer soundproof materials reduce average noise by 6 dB.

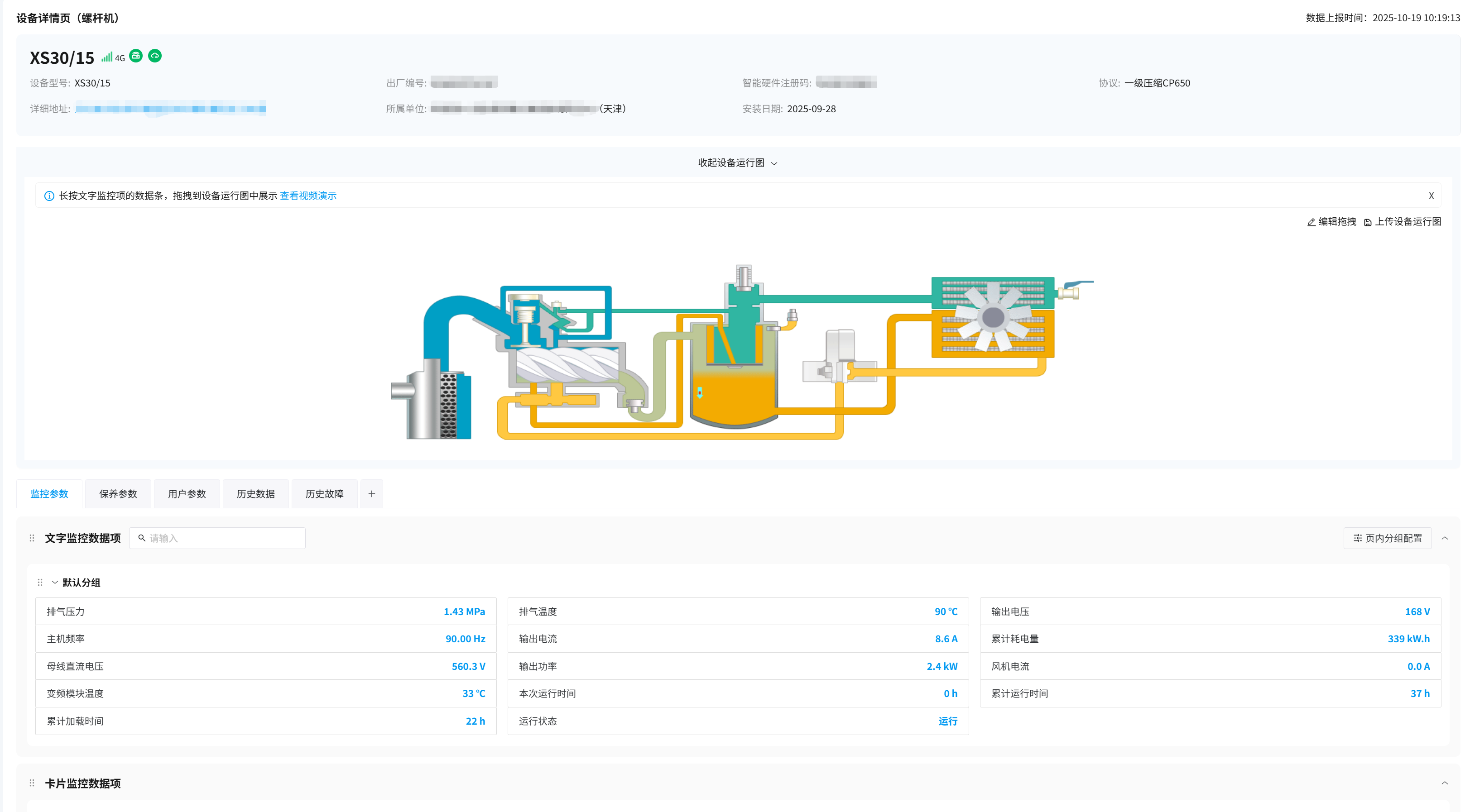

Remote Maintenance
The IoT platform issues automatic alerts and lets you monitor your compressor anytime on mobile or web.
ES Series Technical Specifications
Drive
- Power
- 7.5~37kW
- Airend Type
- Permanent Magnet VSD Screw Compressor
- Motor Type
- Permanent Magnet Synchronous Motor
- Motor Efficiency
- IE5
- Motor Cooling
- Liquid Cooling
Performance
- Flow Capacity
- 1-6.0m³/min
- Working Pressure
- 0.8MPa
- Efficiency Class
- Class 1 Efficiency（GB19153-2019）
Warranty
- Complete Machine
- One year or 8,000 hours
- Airend
- Two years or 16,000 hours
