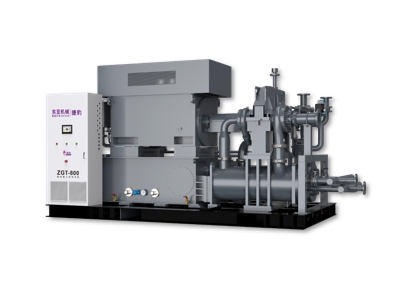

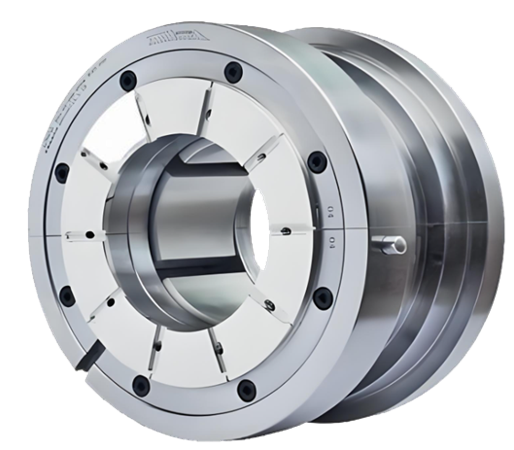

JAGUAR ZGT Centrifugal Compressor
Three-Dimensional Flow Impeller, Three-Stage Compression
Highlights.
NACA Diffuser Technology
Template note: the complete machine passes TÜV Class 0 certification for models ZS-30 to ZS-750.
An Industrial-Grade Answer for Pure Air
The oil-free compression chamber design delivers clean air throughout the lifecycle for pharmaceuticals, food, electronics, and other industries with extremely high air-quality demands.
NACA Airfoil Diffuser Technology
The airfoil diffuser offers low flow loss and high efficiency, performing 3% to 5% better than a vaneless diffuser under design conditions.

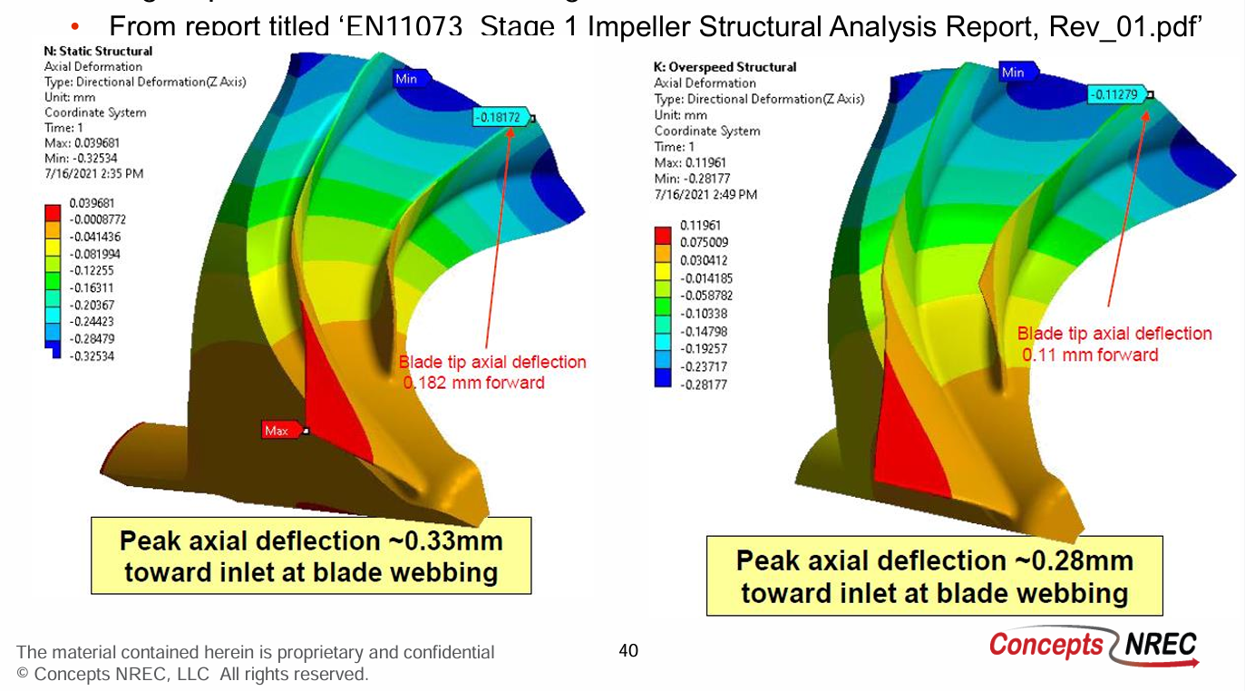

Three-Dimensional Flow Impeller
With three-stage compression, intercooling, a 3D-flow impeller, and full 3D flow-field analysis, it can save about 20% energy compared with traditional compressors.
Airfoil Guide Vanes + Linear Actuator
National Advisory Committee for Aeronautics
Reduced aerodynamic drag through optimized profiles that guide airflow more effectively, reduce separation and vortices, and improve aerodynamic efficiency by 2% to 4%. Stepless control from 0% to 100%.
Multi-Stage Compression Closer to Isothermal Compression
Three-stage compression lowers the compression ratio of each stage and improves compression efficiency. High-efficiency interstage water cooling removes process heat and brings compression closer to isothermal operation.
ZGT Technical Specifications
Drive
- Power
- 150 ~ 4000 kW
- Compression Type
- Centrifugal
- Motor Type
- High-Voltage Motor
- Motor Cooling
- Air Cooling
Performance
- Flow Capacity
- 40 ~ 500 m³/min
- Working Pressure
- 0.2 ~ 1.0 MPa
- Oil Content Class
- Class 0（ISO 8573-1）
Warranty
- Complete Machine
- One year or 8,000 hours (template)
- Airend
- Two years or 16,000 hours (template)
