JAGUAR ZS Dry Oil-Free Screw Compressor
Class 0 Pure Air · Dual Permanent Magnet Motors · Self-Healing Coating
Highlights.
Class 0 Oil-Free Certification
The complete machine passes TÜV Class 0 certification for models ZS-30 to ZS-750, meeting strict oil-free requirements for pharmaceuticals, food, and similar industries.
Pure Compressed Air
The full range passes CLASS 0 oil-free certification and meets the strictest oil-content requirements, with optional JAGUAR adsorption dryers capable of pressure dew points down to -70°C.
JAGUAR Patented Profile
4:6 asymmetric rotors deliver high volumetric efficiency and rotor life exceeding 10 years.
Second-stage airend rotors are made of stainless steel.

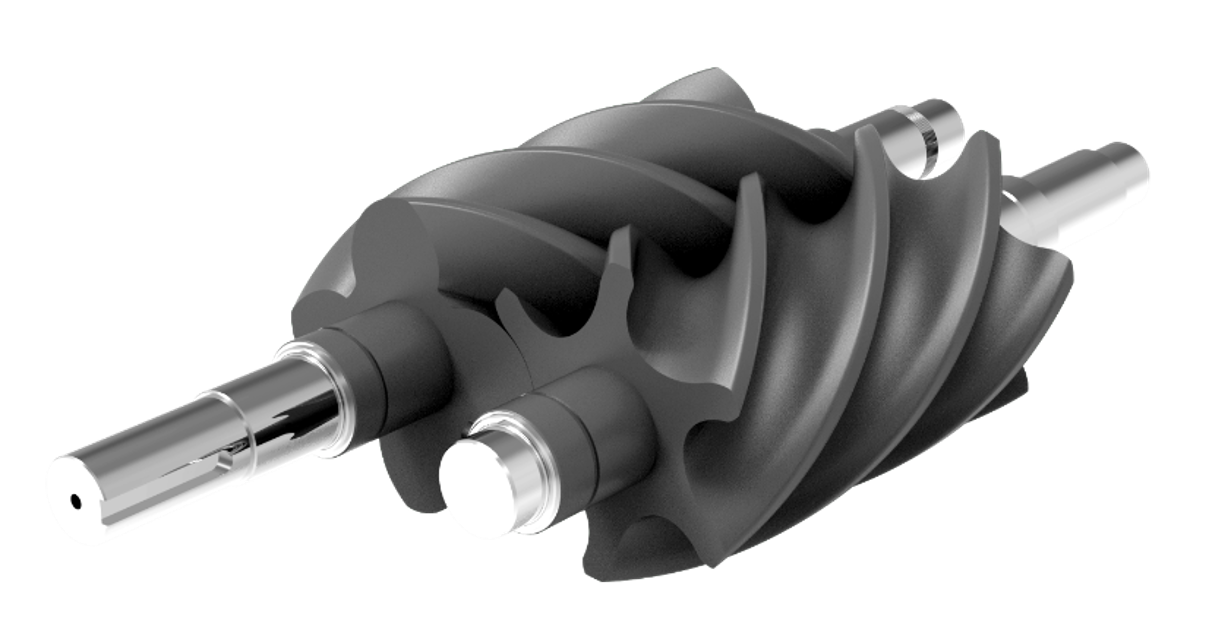

Self-Healing Anti-Corrosion Coating
Flake anti-corrosion material provides self-repair capability that compensates for clearances during running-in and maintains long-term compression efficiency.
Closer to Isothermal Compression
Independent water-jacket cooling keeps compression chamber temperatures lower.
Sustained efficiency with balanced energy consumption and stability.

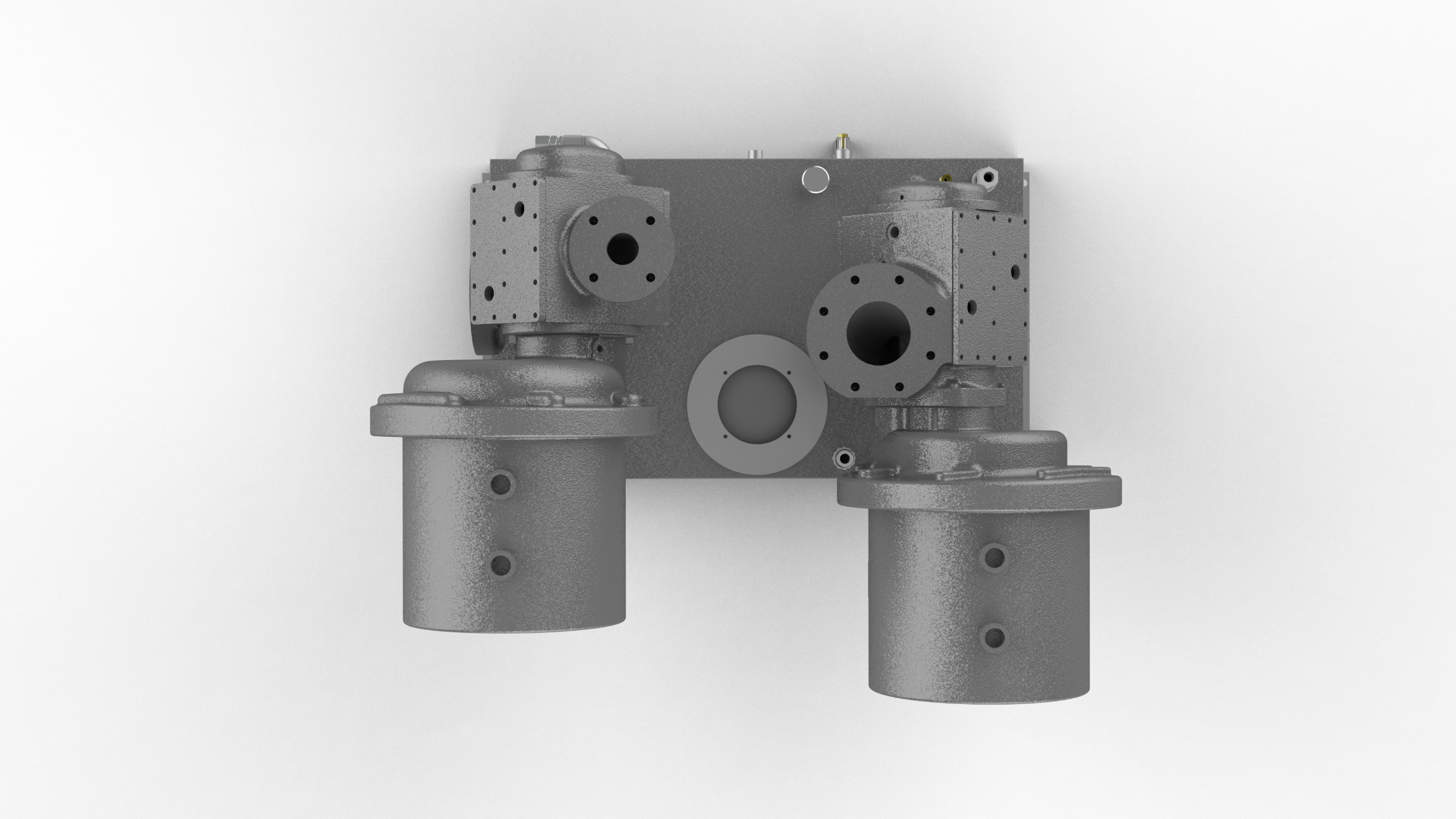

Dual Permanent Magnet Direct Drive
IE5 permanent magnet synchronous motors directly drive the compression chamber, eliminating coupling and belt losses and bringing transmission efficiency close to 100%.
Designed for High-Cleanliness Industries
Widely applied in semiconductors, photovoltaics, pharmaceuticals, food, electronics, and more.

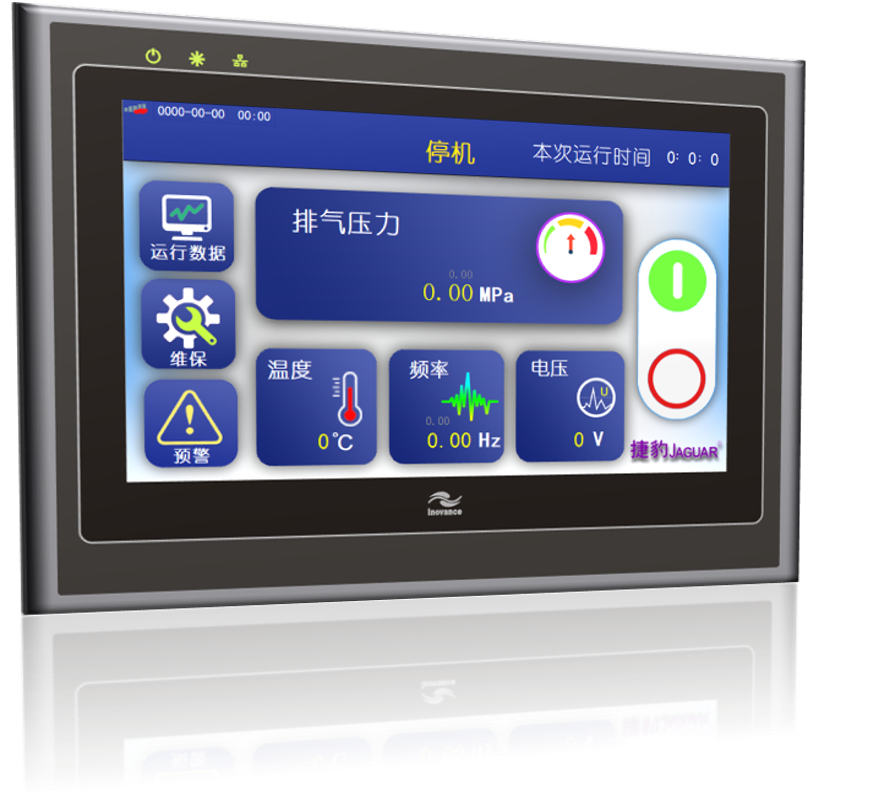

Station-Wide Intelligent Connectivity
The JAGUAR control platform provides operating status monitoring, consumable reminders, and remote alarms to improve overall station efficiency.
ZS Series Technical Specifications
Drive
- Power
- 55 ~ 450 kW
- Compression Type
- Dry Oil-Free Two-Stage Screw
- Motor Type
- IE5 Permanent Magnet Synchronous Motor
- Motor Cooling
- Active Water Cooling
Performance
- Flow Capacity
- 7.5 ~ 73.4 m³/min
- Working Pressure
- 0.8 ~ 1.0 MPa
- Oil-Free Class
- Class 0（ISO 8573-1）
Warranty
- Complete Machine
- One year or 8,000 hours, whichever comes first
- Airend
- Two years or 16,000 hours, whichever comes first (subject to official maintenance requirements)
