ZMT Series Magnetic Bearing Centrifugal Compressor

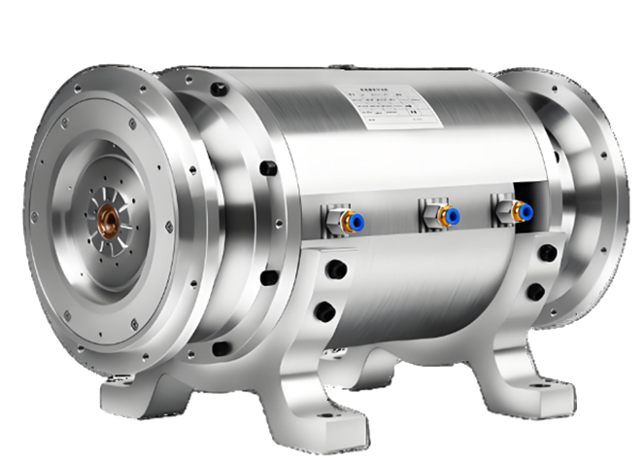

Class 0 Pure Air · High-Speed Permanent Magnet Motor · Magnetic Bearing
Highlights.
Class 0 Oil-Free Certification
The complete machine passes TÜV Class 0 certification for models ZS-30 to ZS-750, meeting strict oil-free requirements for pharmaceuticals, food, and similar industries.
Pure Compressed Air
The full range passes CLASS 0 oil-free certification and meets the strictest oil-content requirements, with optional JAGUAR adsorption dryers capable of pressure dew points down to -70°C.
JAGUAR Three-Dimensional Flow Centrifugal Impeller
Three-Dimensional Flow Impeller
Aerospace-Grade Aluminum Alloy
Magnetic Bearing
High speed, zero contact, and high reliability
Closer to Isothermal Compression
Independent water-jacket cooling keeps compression chamber temperatures lower.
Sustained efficiency with balanced energy consumption and stability.
Dual Permanent Magnet Direct Drive
IE5 permanent magnet synchronous motors directly drive the compression chamber, eliminating coupling and belt losses and bringing transmission efficiency close to 100%.
Designed for High-Cleanliness Industries
Widely applied in semiconductors, photovoltaics, pharmaceuticals, food, electronics, and more.
Station-Wide Intelligent Connectivity
The JAGUAR control platform provides operating status monitoring, consumable reminders, and remote alarms to improve overall station efficiency.
ZMT Series Technical Specifications
Drive
- Power
- 110 ~ 185 kW
- Compression Type
- Centrifugal
- Motor Type
- IE5 High-Speed Permanent Magnet Synchronous Motor
- Motor Cooling
- Active Water Cooling
Performance
- Flow Capacity
- 32 ~ 70 m³/min
- Working Pressure
- 0.2 ~ 0.3 MPa
- Oil-Free Class
- Class 0（ISO 8573-1）
Warranty
- Complete Machine
- One year or 8,000 hours, whichever comes first
- Airend
- Two years or 16,000 hours, whichever comes first (subject to official maintenance requirements)
